Perforated Infill Panels

There are many design uses for perforated metal panels, with balustrade and infill panels being popular in architecture for staircases and balconies.

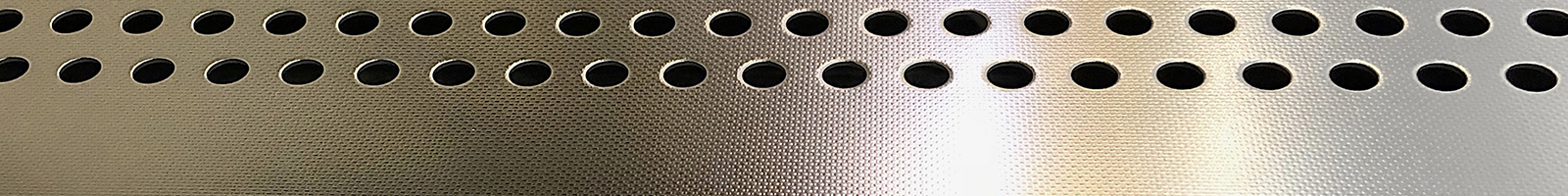

Perforated metal infill panel

  • Perforated panelling is cost effective and low maintenance compared to glass panels
  • Designed to be water and weatherproof
  • Perforated panels are available in a variety of different materials and hole shapes and sizes
  • Can be rolled and folded to fit around spiral staircases
Infill Panel

Technical information

  • 2mm to 4mm thick are the most popular thicknesses
  • Available in a variety of materials such as Mild steel, Aluminium and Stainless Steel
  • Available in a variety of finishes such as mill finish, and powder coated both gloss and matte
  • Hole sizes available from 3mm diameter ranging up to 80mm diameter
  • Popular hole sizes are 10-20mm holes in a range of shapes including round, square and diamond
  • Infill panels cut to any shape and size on CNC punches

C&S are experienced in producing perforated and architectural infill panels and can work with you to provide a complete supply from choosing the right material to finishing the panels off with powder coating

C&S commonly work from cardboard samples, technical drawings and sketches, and 2d and 3d cad files including .DXF .DWG Solidworks Part and Inventor Part files.

CS Fabrications Infill Panels
ISO 9001:2015 Certified
Fully manufactured in house
Products supplied worldwide
