Granulator Screens & Hammer Mill Screens

C&S Fabrications has a wealth of experience manufacturing granulator and hammer mill screens for many popular machine makes, including Herbold, Zerma, Eldan, Wiema, Untha, MTB, Cumberland USI, Genox, Polymer, Blackfriars, Rapid, Vecoplan, Linder, Getcha, Tria, Jesma, Mewa, Dragon, Kween B, Soplar, McKinnon, Satrind, Bano, Preverio, Mair, Terrier, Falzoni and Columbus.

Industrial screens are a vital part of the recycling process and long lasting quality screens manufactured by C&S Fabrications means you will have less downtime due to worn and damaged screens.

Hammer Mill & Granulator Screens

Technical information

  • 25mm maximum screen thickness
  • Available in round, square, triangle, hexagonal and slotted perforations
  • Fully perforated and fabrication to your requirements
  • Laser profiled and perforated in house for fast turnaround times
  • Available in different material grades

As one of the UK’s only company with two of the last few Amada 50 Tonne turret punch press machines, C&S are able to perforate materials up to 10mm thick in house. Punching holes in metal is much more cost effective and faster than laser profiling meaning industrial screens manufactured by C&S Fabrications are cheaper than local competitors.

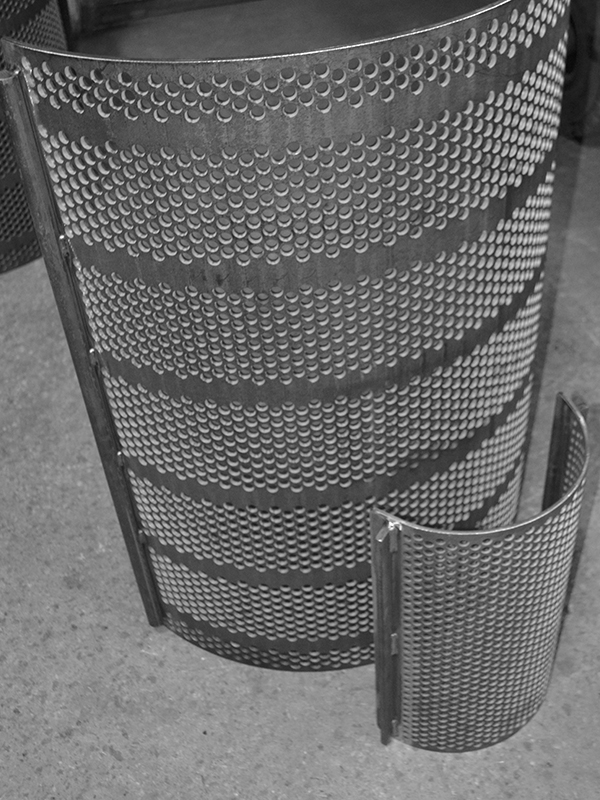

CS Fabrications In house granular screens

Materials available include

  • Mild Steel
  • Domex 700
  • Hardox 400, 450, 500, 550
  • Stainless Steel
  • Boron B30
  • Creusabro
  • Raex
  • XAR
  • 3CR12 Cromweld

Granulator Screens, Drier Screens & Shredder Screens

Screens are manufactured in house and shipped worldwide. Screens can be manufactured to existing samples or from a technical drawing or sketch. A cost effective solution for granulator screens is mild steel, it is readily available and can be easily formed. C&S Fabrications now stocks wear plate material such as Hardox and Domex meaning heavy duty hard-wearing granulator screens are now available at a fraction of the cost.

Granulator Screens Manufacturer – Made to order

  • Perforated plate up to 10mm thick
  • Laser & Plasma profiling
  • Welding
  • Rolling
  • Drilling, Tapping & Countersinking
  • Folding / Bending

All screens are manufactured in house under one roof meaning much lower cost screens and fast turnaround times. Screens can be ordered as a one-off or a large call-off order to reduce unexpected down time

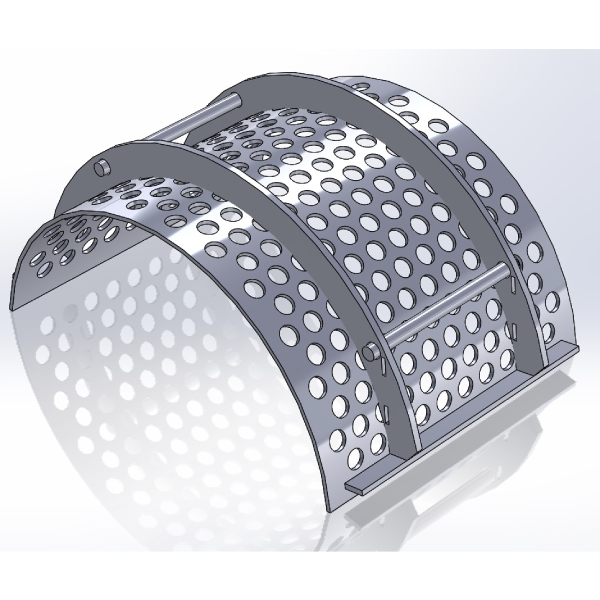

CS Fabrications Granulator Screens

Through Hardened Screens

For select applications where common materials such as Hardox and Mild Steel are not sufficient, C&S are able to offer screens exceeding a Brinell hardness of 500. Chrome Boron B30 is a heat-treated steel with exceptional wear resistance ideal for applications such as Tyre and Cable recycling. Chrome Boron B30 screens feature enhanced carbide and grain structure offering wear resistance on a level which is not achievable through Hardox. C&S Fabrications are proud to manufacture Chrome Boron screens in house to a range of recycling firms worldwide.

Industrial screens are used for

  • Plastic recycling
  • Tyre Recycling
  • Cable recycling
ISO 9001:2015 Certified
Fully manufactured in house
Products supplied worldwide
